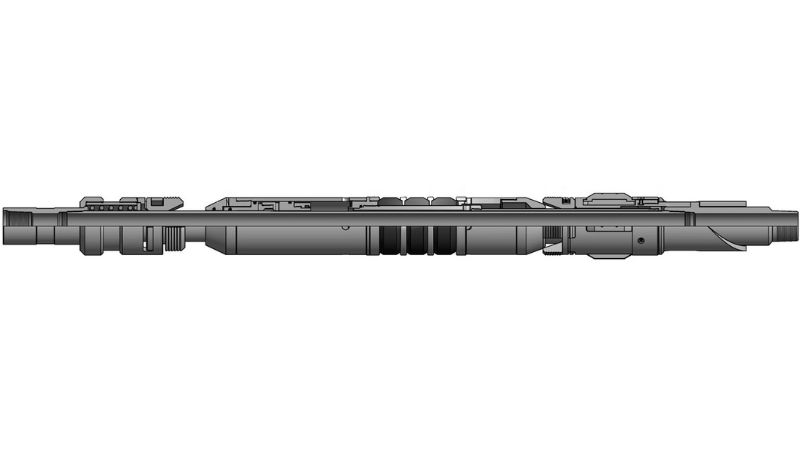

Large-opening, compression-set packer is BRAS-II Packers. This packer uses upper and lower mechanical slips together with a three-element packing system to handle high pressure from both the directions. Simple mechanisam of a drag block system and a J-slot are included. To enhance retrievability, this packer features an integrated unloader that moves over the mechanical hold-down slides. When pressure is higher than the set packer, the unloader's pressure compensating piston keeps it closed.
The right-hand auto set with straight pick-up release J-slot configuration is the norm for the BRAS-II Packer. Further J-slot configurations are available upon request as of left-hand auto set, left-hand manual set, and right-hand manual set. Straight pick-up release arrangements are applied to all J-slot configurations.
Features:
- Large internal by-pass.
- Mechanical slips with carbide buttons.
- Differential pressure from above and below with holds valve closed.
- Additional J-slot arrangements available.
Technical document
Product Specifications
| CASING | PACKER | |||||
|---|---|---|---|---|---|---|
| Size (in.) | Weight (lbs/ft) | Recommended Hole Size (in.) | Gage O.D. (in.) | MIN. I.D. (in.) | Thread Connections | Part Number |
| 4-1/2" | 9.5 - 13.5 | 3.920 - 4.090 | 3.750 | 1.940 | 2-3/8 EUE | BRAS-II-450230A |
| 4-1/2" | 15.1 | 3.826 | 3.656 | 1.940 | 2-3/8 EUE | BRAS-II-450230B |
| 5" | 11.5 - 18.0 | 4.276 - 4.560 | 4.125 | 1.940 | 2-3/8 EUE | BRAS-II-500230A |
| 5" | 18.0 - 21.4 | 4.126 - 4.276 | 4.000 | 1.940 | 2-3/8 EUE | BRAS-II-500230B |
| 5-1/2" | 14.0 - 20.0 | 4.778 - 5.012 | 4.625 | 2.000 | 2-3/8 EUE | BRAS-II-550230A |
| 5-1/2" | 14.0 - 20.0 | 4.778 - 5.012 | 4.625 | 2.380 | 2-7/8 EUE | BRAS-II-550270A |
| 5-1/2" | 20.0 - 23.0 | 4.670 - 4.778 | 4.500 | 2.000 | 2-3/8 EUE | BRAS-II-550230B |
| 5-1/2" | 20.0 - 23.0 | 4.670 - 4.778 | 4.500 | 2.380 | 2-7/8 EUE | BRAS-II-550270B |
| 7" | 17.0 - 26.0 | 6.276 - 6.538 | 6.000 | 2.500 | 2-7/8 EUE | BRAS-II-700270A |
| 7" | 26.0 - 32.0 | 6.094 - 6.276 | 5.875 | 2.500 | 2-7/8 EUE | BRAS-II-700270B |
| 7" | 26.0 - 32.0 | 6.094 - 6.276 | 5.875 | 3.000 | 3-1/2 EUE | BRAS-II-700350B |
| 7" | 29.0 - 35.0 | 6.004 - 6.184 | 5.812 | 2.500 | 2-7/8 EUE | BRAS-II-700270C |
| 7-5/8" | 33.7 - 39.0 | 6.625 - 6.765 | 6.453 | 3.000 | 3-1/2 EUE | BRAS-II-760350A |
| 9-5/8" | 32.3 - 43.5 | 8.755 - 9.001 | 8.500 | 3.000 | 3-1/2 EUE | BRAS-II-960350A |
| 9-5/8" | 32.3 - 43.5 | 8.755 - 9.001 | 8.500 | 4.000 | 4-1/2 EUE | BRAS-II-960450A |
| 9-5/8" | 43.5 - 53.5 | 8.535 - 8.755 | 8.250 | 3.000 | 3-1/2 EUE | BRAS-II-960350B |
| 9-5/8" | 43.5 - 53.5 | 8.535 - 8.755 | 8.250 | 4.000 | 4-1/2 EUE | BRAS-II-960450B |
| 13-3/8" | 54.5 - 77.0 | 12.275 - 12.615 | 12.000 | 4.000 | 4-1/2 EUE | BRAS-II-1330450A |
